EnergyLogic Heaters & Boilers

  • Home
  • EnergyLogic Heaters & Boilers

Heaters

EL 140H Waste Oil Heater

  • Heats up to 3,500 square feetapproximately one to four service bays
  • BTU Input: 140,000 BTU (41.6 kW) per hour
  • Fuel Flow Rate: 1.0 gallons/hour (3.78 liters/hour)
  • Heat Rise Over Input Air: 100-120º F (56-67º C)
  • Airflow: 1000 cfm
  • Exhaust flue diameter: 6” or 8”
  • Dimensions: 18”H x 18”W x 92”L
  • Weight: 295 lbs.

EL 200H Waste Oil Heater

  • Heats up to 5,000 square feetapproximately four to eight service bays
  • BTU Input: 200,000 BTU (58.3 kW) per hour
  • Fuel Flow Rate: 1.4 gallons/hour (5.3 liters/hour)
  • Heat Rise Over Input Air: 100-120ºF (56-67º C)
  • Airflow: 1500 cfm
  • Exhaust flue diameter: 6” or 8”
  • Dimensions: 18”H x 18”W x 103”L
  • Weight: 315 lbs.

EL 350H Waste Oil Heater

  • Heats up to 9,000 square feetapproximately eight or more service bays
  • BTU Input: 350,000 BTU (102 kW) per hour
  • Fuel Flow Rate: 2.5 gallons/hour (9.4 liters/hour)
  • Heat Rise Over Input Air: 100-120º F (56-67º° C)
  • Airflow: 2600 cfm
  • Exhaust flue diameter: 8”
  • Dimensions: 22”H x 22” W x 117”L
  • Weight: 415 lbs.

Boilers

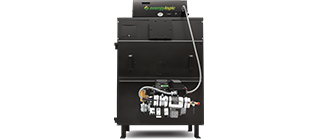

EL 200B Boiler

  • BTU Input: 200,000 BTU (58.3 kW) per hour
  • Fuel Flow Rate: 1.4 gallons/hour (5.3 liters/hour)
  • Water Output Temp: 230º F (110º C)
  • Capacity: 30 gallons (114 liters)
  • Exhaust flue diameter: 8”
  • Dimensions: 45”H x 32”W x 50”D
  • Weight: 790 lbs.

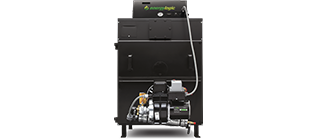

EL 375B Boiler

  • BTU Input: 375,000 BTU (110 kW) per hour
  • Fuel Flow Rate: 2.7 gallons/hour (10.2 liters/hour)
  • Water Output Temp: 230º F (110º C)
  • Capacity: 43 gallons (162.75 liters)
  • Exhaust flue diameter: 8”
  • Dimensions: 45”H x 28”W x 60”D
  • Weight: 1042 lbs.

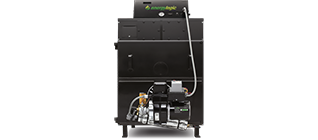

EL 500B Boiler

  • BTU Input: 499,000 BTU (146 kW) per hour
  • Fuel Flow Rate: 3.6 gallons/hour (13.6 liters/hour)
  • Water Output Temp: 230º F (110º C)
  • Capacity: 52 gallons (200 liters)
  • Exhaust flue diameter: 10”
  • Dimensions: 45”H x 32”W x 68”D
  • Weight: 1160 lbs.
