OVERHEAD EXHAUST RAIL & TELESCOPIC SYSTEMS

“TELESCOPICALLY®” Designed Over Exhaust Drop Model #TS-30

The Harvey model #TS-30 is “TELESCOPICALLY®” designed to simplify and improve upon existing overhead exhaust drops currently available. The #TS-30 consists of three lengths of lightweight, flexible tubing that slide one into another and give the appearance of only one 6’ length of tubing attached to the overhead duct.

The tubing and tailpipe adapter that connect to the vehicle are non-crush, neoprene rubber. Drive over it! The tubing and adapter cannot be crushed or damaged. Pull-up sets are not required with the #TS-30 and #TS-40 drops.

HRX-812 Exhaust Rail

The HRX-812’s elliptically shaped aluminum rail allows for efficient airflow and sleek styling. The easy-glide trolley assembly allows drops to be shared among bays (check state and local codes). It also features pinned joints to guarantee easy alignment of rail sections and our “Positive Pull” nut and bolt joining system with gasketed seams to ensure a simple, trouble-free installation.

Trolley assembly can be fitted with the standard #TS-30 drop or the #3-Skyhook balancing pull-up configuration or any of the RHR series hose reels. The heavy duty trolley assembly is fitted with eight ball bearing wheels for smooth operation.

Rail systems also available for heavy duty transit truck/bus or industrial applications.

RETRACTABLE EXHAUST HOSE REEL

The Harvey Automatic Retractable Hose Reel offers one of the most convenient methods available for extracting harmful exhaust fumes and gases from all types of service areas. The carbon spring-operated hose reel is designed for years of trouble-free service and can be adapted for use with ALL types of vehicles.

The exhaust hose supplied with the reel is fabricated of Silicone Fiberglass with an internal wire helix and rubber coated. It is high heat resistant to 600 degrees and meets U.S. military and commercial specifications as well as United States Air Force requirement for high temperature stability.

A Harvey Hose Reel is shipped prewound and complete with the following components:

Retracting hose reel with automatic recoil, lock, and latch
SF exhaust hose
4’ x 6” duct connecting exhaust tube with clamps
Tailpipe adapter
Stop collar with clamps

Custom hose lengths are available upon request.

STANDARD OVERHEAD SYSTEMS

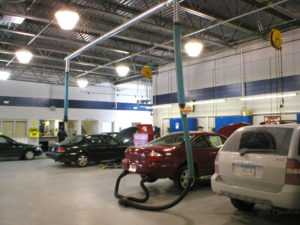

An overhead system is easily installed in an existing or new building. A single drop is normally located at the side of the stall approximately 1’ behind the rear vehicle bumper. The ductwork should be at an elevation of 15’ to 16’ A.F.F., which would then allow the standard 20’ hose drop to attach to either right or left side mounted tailpipes.

An overhead drop is installed by slipping the overhead coupler over the appropriate size stub or airflow “T” of the ductwork. The overhead coupler is held in place with a bolt through the assembly.

For dual exhaust vehicles, a “Y” harness should be used in conjunction with the overhead drop.

Various types of pull-up sets are available to retract hose drops when not in use, such as Harvey’s No. 1, 2, 3, or 4 Skyhooks.

System Options and Components

OH-30/40 Drop Assembly
Diesel Exhaust Systems
Pull-Up Sets for Overhead Systems
Balancer for Overhead Systems
Heavy Duty Pull Up Reel

Specialty Exhaust Hose
High Temperature Exhaust Hose
Welding Hose
Welding Exhaust Hood
Welding Hood

HEAVY DUTY EXHAUST

Harvey Industries designs and build a complete line of exhaust extraction equipment for any heavy duty applications.

Please contact the factory or your local rep for assistance in the design of any custom configuration.

CARBON MONOXIDE AND TOXIC FUME EXHAUST BLOWERS

Housings, wheels, and frames are welded providing heavy construction and assuring solid, rattle-free units. Wheels are supported by heavy cast iron hubs and are static and dynamically balanced. Belt drive units are equipped with variable speed drives.

Clockwise rotation wheel and bottom horizontal discharge housing is standard. Discharge may be changed to any one of eight directions at job site or specified on order. Direct drive, BD-7 and BD-8 belt drive blowers are either forward curve or radial blade. All other belt drive blowers are backward curve. All blowers comply with AMCA Standard 210 and bear the AMCA Seal.

Don Parker Sales Harvey Vehicle Exhaust CARBON MONOXIDE AND TOXIC FUME EXHAUST BLOWERS Various types of installations may require accessories for the blower such as:

All-Weather Cover
Back Draft Damper
Vibration Pads
Belt Guard

Acid-Resistant Coating of Air Stream
Spark-proof Construction
Inlet and Outlet Flexible Connections
Blower Platforms

Blower Limited Warranty

Should any failure due to defective workmanship or material occur within 12 months from date of shipment, replacement of defective part only will be made promptly without charge. This warranty does not cover ordinary wear and tear, abuse, misuse, overloading, altered products, or materials not of seller’s manufacture.

CUSTOM DESIGNED AND BUILT

For mom-and-pop repair shops on up to large dealerships and transit authorities.
